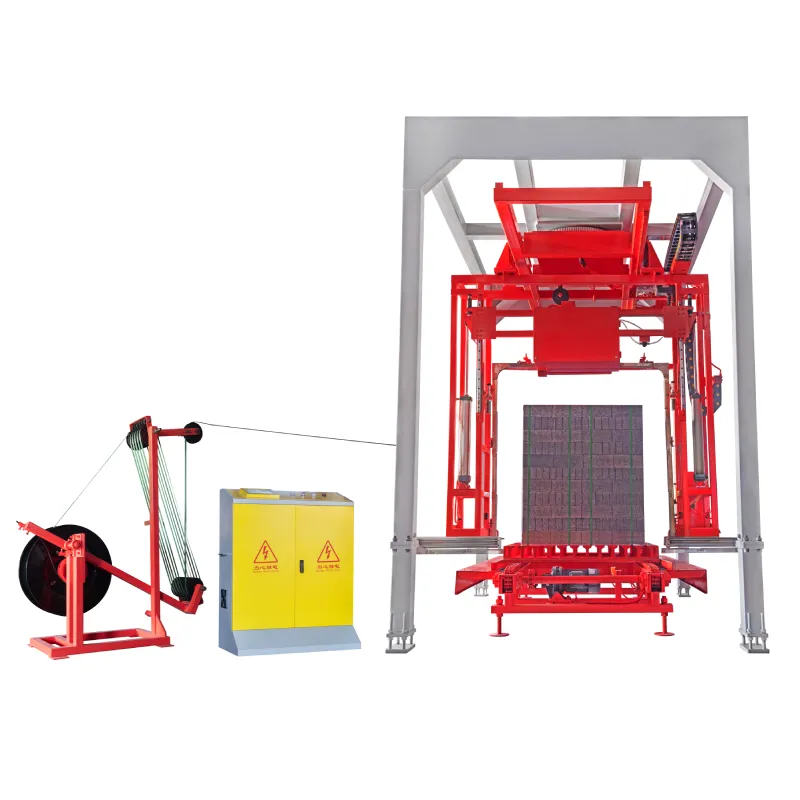

This machine is a component of the fully automatic plastic strapping machine system, with the packaging function of the module system. It is equipped with a moving track that runs smoothly and has precise positioning. It can automatically repeat the feeding of straps, as fast as 1 strapping every 20 seconds, greatly improving production efficiency. It can also automatically change and feed straps, thread straps at any height, and the tension coefficient can be adjusted. The adjustment is simple and accurate to ensure the strapping effect.
Main Technical Data:
Model
Integrated arrow baling machine
Total power (kw)
3KW
Machine size by mm
(length×width×height)
2100*2100*4300
Total weight (kg)
1000KG
Arrow-Piercing Cart
This machine is equipped with a purely mechanical turntable for belt storage, a freely retractable belt threading slot, and an integrated arrow-threading baler that is synchronously driven, with a storage capacity of up to 70KG plastic-steel belts.
Main Technical Data :
Model
Arrow-piercing cart
Machine size by mm
(length×width×height)
1300*500*2100
Total weight (kg)
160KG
Arrow Tray
Arrow try is used to place brick stack for easy bundling,packaging and transportation.
Main Technical Data:
Model
Arrow tray
Machine size by mm
(length×width×height)
1200*1200*140
Total weight (kg)
290KG/1pc
Arrow Head Combination
Equipment technical parameters
Single bundle time
The arrow slot takes about 20 seconds (including movement)
Move rails
A variety of positioning programs to meet various needs
Maximum distance of guide rail movement: 1100mm
Guide rail moving speed: about 200mm/s
Head tension
Max.3000N
Welding module weight
20kg
Weight of belt feeding/tensioning module
21kg
Arrow-piercing cart
Separated from the equipment, with belt storage device
