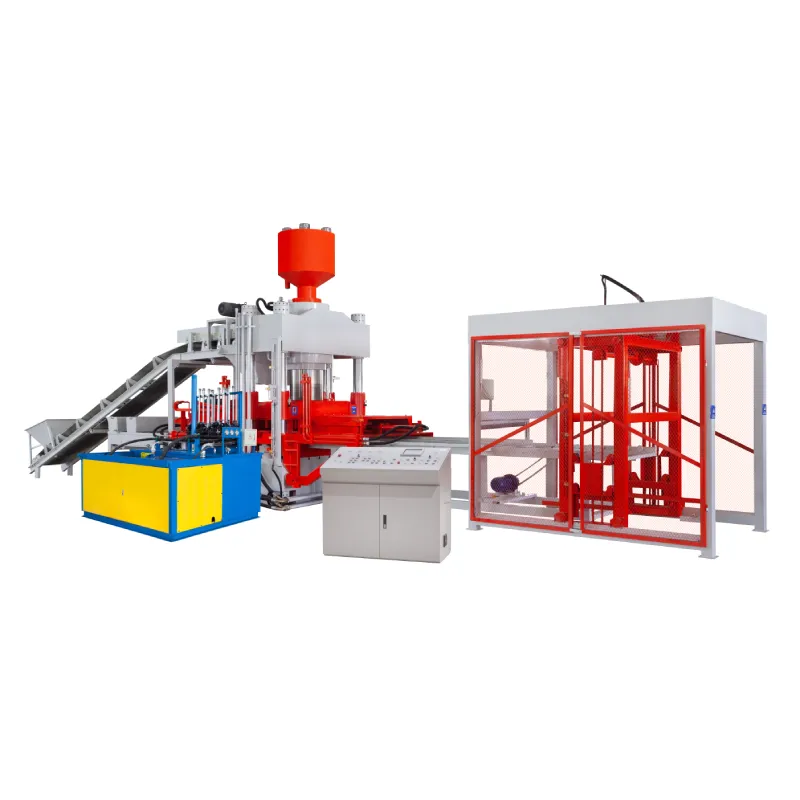

XX600 Hydralic Pressing Machine

Production Capacity (Pieces/8 hours):36000pcs/8hours for solid blocks 240*115*51mm
Brick Size:400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

설명

Product Overview

Raw material	Don't need cement at all
Max. pressure	31.5Mpa
Total weight	About 23000kgs
Total power	46.9kw
Main cylinder diameter	420mm
Cycle time	16-22s
Forming area	850*700mm
Pallet size	900*700
Advantage	20 years manufacturing experience

This machine uses pure hydraulic pressure but not vibration to make bricks. So the bearing pressure of bricks made by it are higher than those made by vibration block machine. It means, the bricks made by it are more durable. If there are more fly ash and other powdery materials in the raw materials, this static hydraulic press block machine is more suitable.
