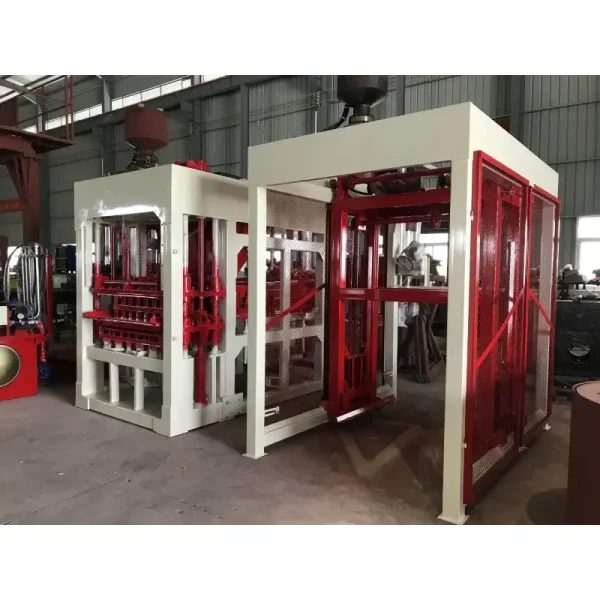

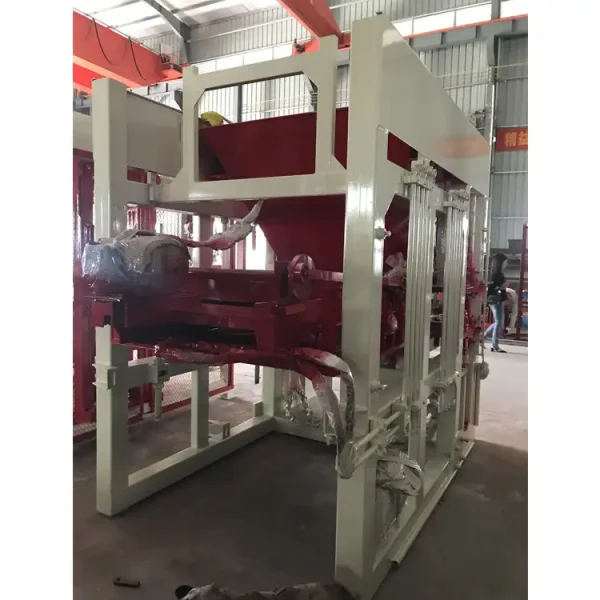

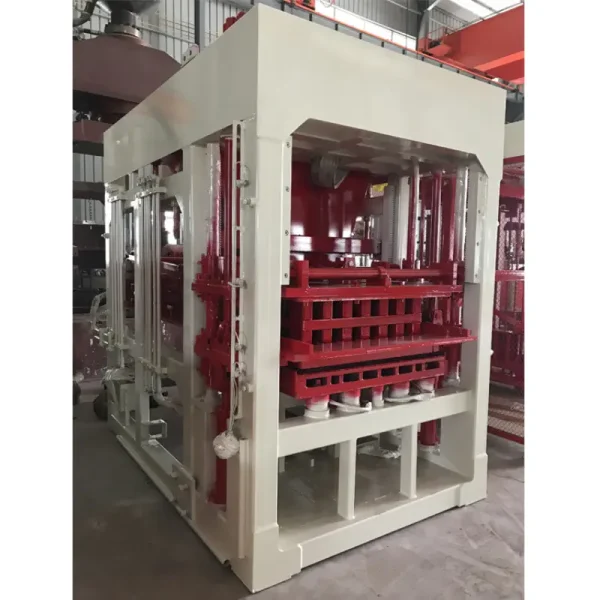

QT4-15 벽돌/블록 제작 기계

설명

Product Description

QT4-15 Techinical Data
진동 주파수	3800-4500r/min
주요 기계 무게	6200KG
Machine dimension	945033002700mm
총 전력	26.7KW
주기 시간	15-23s
정격 압력	25mpa
진동력	68KN
팔레트 크기	980*560mm

Some Advantages of XINGXIN QT Series Concrete Block Making Machine:

1. About PLC control cabinet : SIEMENS PLC and button; ABB relay; Schneider Accessories etc. Furthermore, there is and additional heat dispassion resistor installed the right side of our PLC for speeding up the dispassion and makes the cycle time shorter.
2. Our hydraulic station system and solenoid valve are Youken brand which is from Taiwan. It is fully sealed so don't worry water leakage and there is a cover for easily clean.
3. About vibration box and raw materials feeding: we use the advantage frequency conversion motor to make the density of different types of blocks produced are nice.

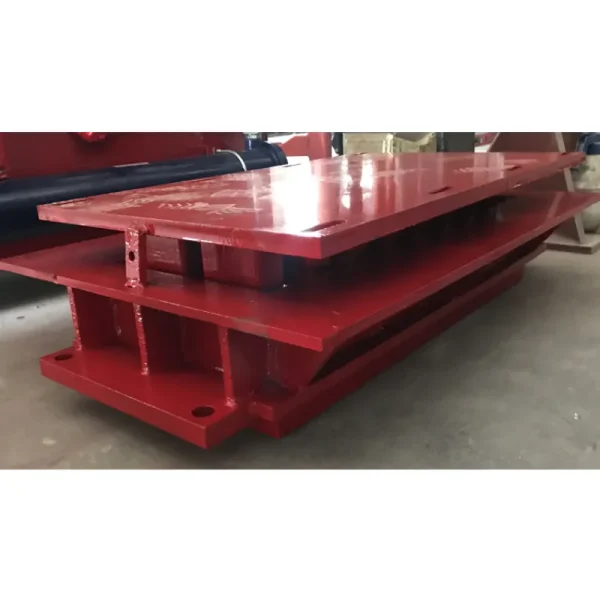

4. Whole cast vibration box used not welded by iron plates to make our vibration box stronger and longer lifespan.
5. More advantages of our block machines please feel free to contact with us, thanks!

Output Capacity
Hollow brick:	390190190 mm	4 pieces/mold;	5760-7680 pieces/8 hours
Porous bricks:	24011590mm	14 pieces/mold	20160-26880 pieces/8 hours
Paver bricks:	20010060 mm	14-16 pieces/mold	18200-23100 pieces/8 hours
Solid brick:	23811551 mm	26-28 pieces/mold	37440-49920 pieces/8 hours;
